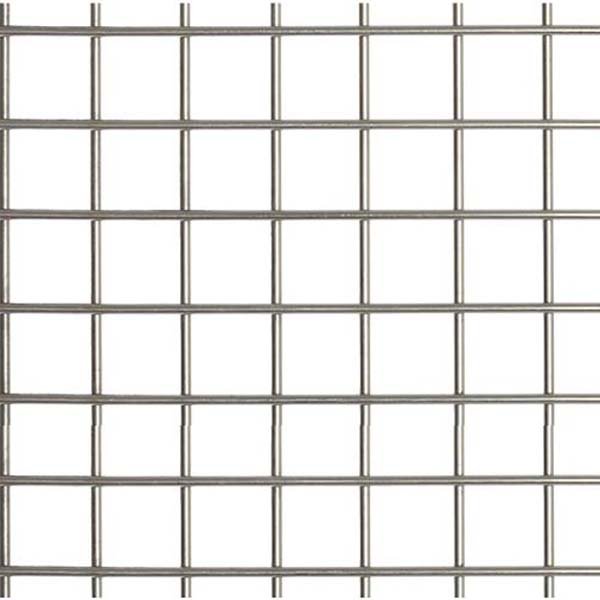

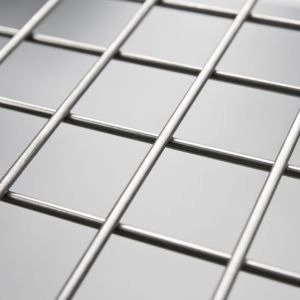

Welded Wire Mesh

Weld Mesh is a welded wire mesh which is manufactured from metal wires welded at their intersections. By using different diameter wires it can be made into a light or heavy gauge product. It is manufactured in mild steel, galvanized, and stainless steel.

Product information

  • Range of mesh Size: Minimum :- 15 X 15 MM Maximum :- 150 X 150 MM
  • Range of Wire Diameter: 1.3 to 6.0 MM
  • Maximum Available Width: 2 Mtr
  • Special sizes, which are not listed above, may possible to be manufactured with advance order.
  • Description:

    We manufactures and exports Welded Mesh & Reinforced Fabrics in 2 meter Width & 6mm Wire Dia, In Square, Rectangular Dimensions from 13mm to 200 mm Opening. Specialized in M.S., G.I, stainless steel Grade and straightened Wire Rods from 1.3mm to 6mm in any metals & accurate lengths.. Stainless steel is widely popular due to its strength, hygienic and rustproof qualities.

Welded Wire Mesh is a type of wire fabric where parallel longitudinal wires are welded to cross wires at fixed intervals, forming a grid pattern. It is a high-strength, versatile, and economical material used in a wide range of applications including construction, agriculture, industry, and security.

Manufacturing Process

1. Material Selection

  • Typically made from low carbon steel wire, stainless steel wire, or galvanized wire
  • The choice depends on strength and corrosion resistance requirements

2. Wire Drawing

  • The metal rods are drawn through a series of dies to reduce the diameter to the desired wire thickness

3. Straightening and Cutting

  • Wires are straightened and cut to required lengths

4. Welding

  • Wires are assembled into a grid and electrically resistance-welded at intersections
  • No filler metal is used; the weld is formed by heating the wire ends under pressure

5. Surface Treatment (if required)

  • Galvanizing (before or after welding) for corrosion protection
  • PVC coating for enhanced durability and aesthetics
  • Electro-galvanized or hot-dip galvanized options are common

Applications

  • Construction: Used in concrete reinforcement, wall reinforcement, and floor slabs
  • Fencing: Security fencing, animal enclosures, and perimeter fencing
  • Agriculture: Animal cages, poultry nets, and plant protection
  • Industrial: Machine guards, shelving, and filtration systems
  • Architecture & Interior Design: Decorative panels, room dividers, and façade elements

Welded Mesh Size & Weight

Sr.no. Mesh Size[ mm] Wire Diameter[mm] Width X Length [Feet] Approx. Weight(±1)(Kg)
1 15mm X 15mm 1.60mm 3 X 50 27-28
2 15mm X 15mm 1.60mm 4 X 50 36-37
3 20mm X 20mm 1.80mm 3 X 50 29-30
4 20mm X 20mm 1.80mm 4 X 50 39-40
5 25mm X 25mm 2.45mm 3 X 50 38-39
6 25mm X 25mm 2.45mm 4 X 50 49-50
7 25mm X 25mm 2.90mm 3 X 50 54-55
8 25mm X 25mm 2.90mm 4 X 50 73-74
9 25mm X 25mm 2.90mm 5 X 50 90-91
10 30mm X 30mm 2.10mm 3 X 50 22-23
11 30mm X 30mm 2.10mm 4 X 50 30-31
12 30mm X 30mm 2.10mm 5 X 50 38-39
13 30mm X 30mm 2.30mm 3 X 50 27-28
14 30mm X 30mm 2.30mm 4 X 50 36-37
15 30mm X 30mm 2.30mm 5 X 50 45-46
16 30mm X 30mm 2.70mm 3 X 50 37-38
17 30mm X 30mm 2.70mm 4 X 50 49-50
18 30mm X 30mm 2.70mm 5 X 50 62-63
19 50mm X 50mm 2.20mm 4 X 100 43-44
20 50mm X 50mm 2.20mm 5 X 100 54-55
21 50mm X 50mm 3.00mm 4 X 100 76-77
22 50mm X 50mm 3.00mm 5 X 100 95-96
23 65mm X 65mm 2.20mm 4 X 100 37-38
24 65mm X 65mm 2.20mm 5 X 100 46-47
